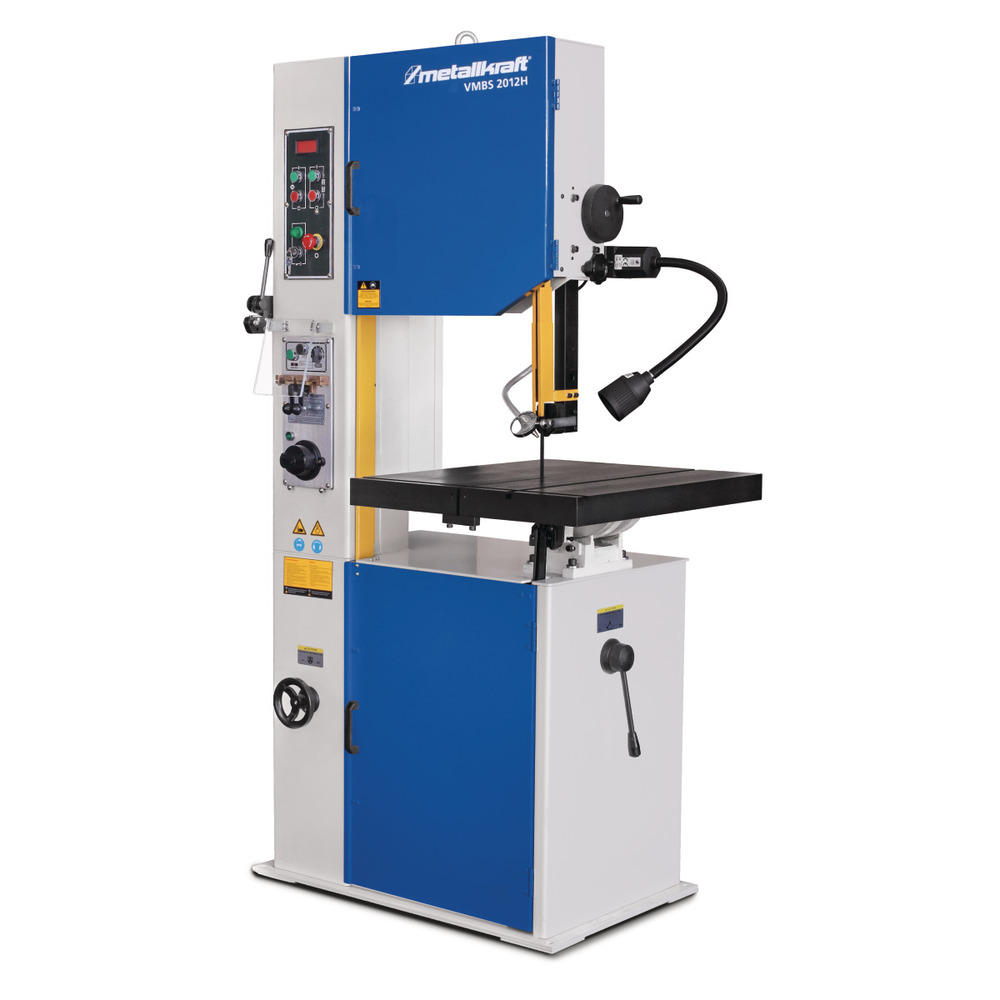

VERTICAL METAL CUTTING BANDSAW
Delivery Available | Harare | Mutare | BulawayoVMBS 2012H
Vertical metal cutting
Technical Specifications
| Throat | 508 mm |
| Max. cutting height | 305 mm |
| table size | 600 x 700 mm |
| working height | 1016 mm |
| Table swivel area left / right | |
| saw band | 4030 mm |
| Max. saw band width | 27 mm |
| Saw blade speed (1st gear) | 15-125 m / min |
| Säbegandgeschwindigkeit (2nd gear) | 165 – 1500 m / min |
| Sägebandschweißgeräteleistung | 19 mm |
| engine power | 2.2 kW |
| Dimensions | 1090 x 810 x 2030 mm |
| mass | 590 kg |
| Wheel-Ø | 515 mm |
| SPL | 71.7 dB (A) |
| Table load max. | 350 kg |
description
In solid and proven construction with band welding unit
- With 2-speed gearbox
- With circle cutting device
- With miter stop for angle cuts
- With manual material feed
- Height adjustment of the saw blade guide by handwheel
- Extremely stable construction, entire machine body made of steel
- User-friendly operating concept
- With workplace lighting
- Tilting work table made of gray cast iron
- Speed continuously adjustable
- Tape tension and tape speed indicator
- Blower for sawdust
- Integrated band welding unit with annealing, cutting and grinding device
- With rip fence
