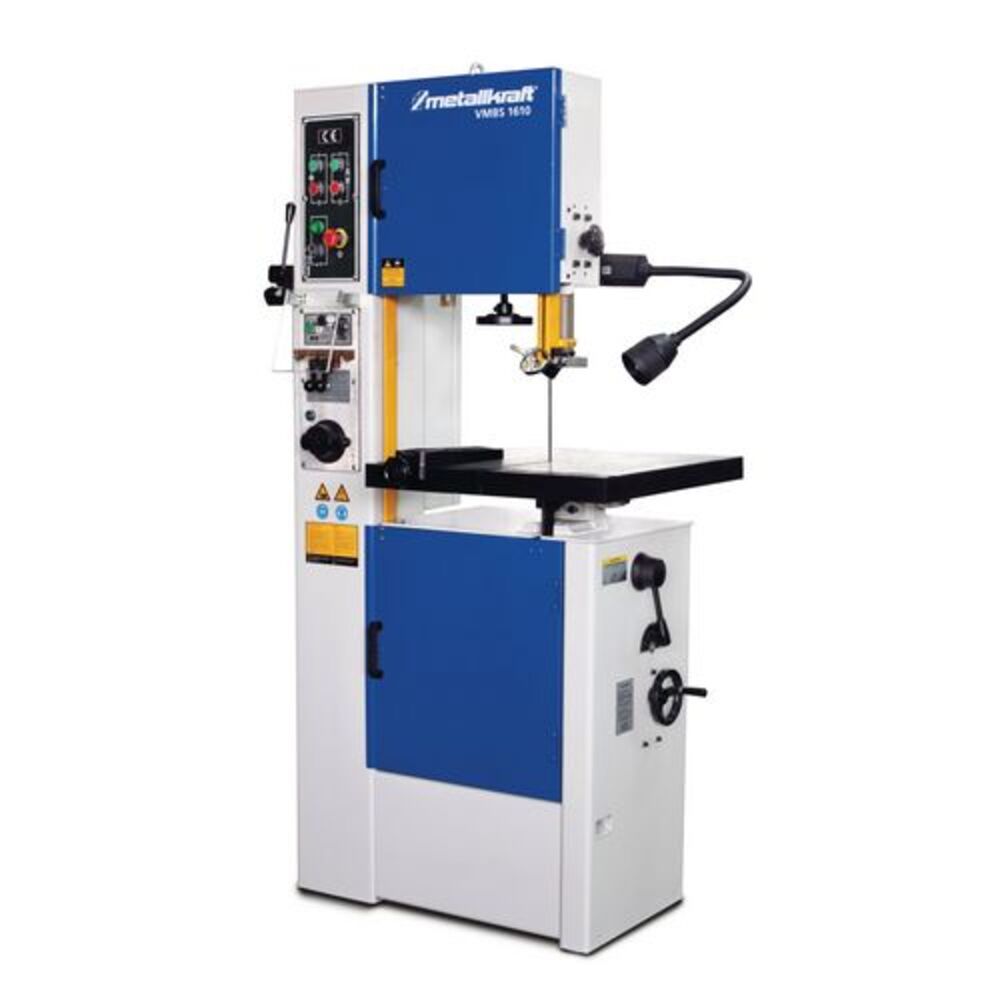

VERTICAL METAL BAND SAW
Delivery Available | Harare | Mutare | BulawayoVMBS 1610
Vertical metal cutting
Vertical metal band
saws Metal Kraft
Technical specifications
| Throat | 396 mm |
| Max. cutting height | 255 mm |
| table size | 550 x 600 mm |
| working height | 1000 mm |
| Table swivel area left / right | |
| Table swivel area front / rear | |
| saw band | 3140 mm |
| Max. saw band width | 16 mm |
| Saw blade speed (1st gear) | 20 – 80 m / min |
| Säbegandgeschwindigkeit (2nd gear) | 250 – 1000 m / min |
| Sägebandschweißgeräteleistung | 16 mm |
| engine power | 1.5 kW |
| Dimensions | 940 x 675 x 1840 mm |
| mass | 410 kg |
| Wheel-Ø | 408 mm |
| SPL | 70.5 dB (A) |
| Table load max. | 150 kg |
description
In solid and proven construction with band welding unit
- With 2-speed gearbox
- Extremely stable construction, entire machine body made of steel
- User-friendly operating concept
- With workplace lighting
- Tilting work table made of gray cast iron
- Speed continuously adjustable
- Tape tension and tape speed indicator
- Blower for sawdust
- Integrated band welding unit with annealing, cutting and grinding device
- With rip fence
