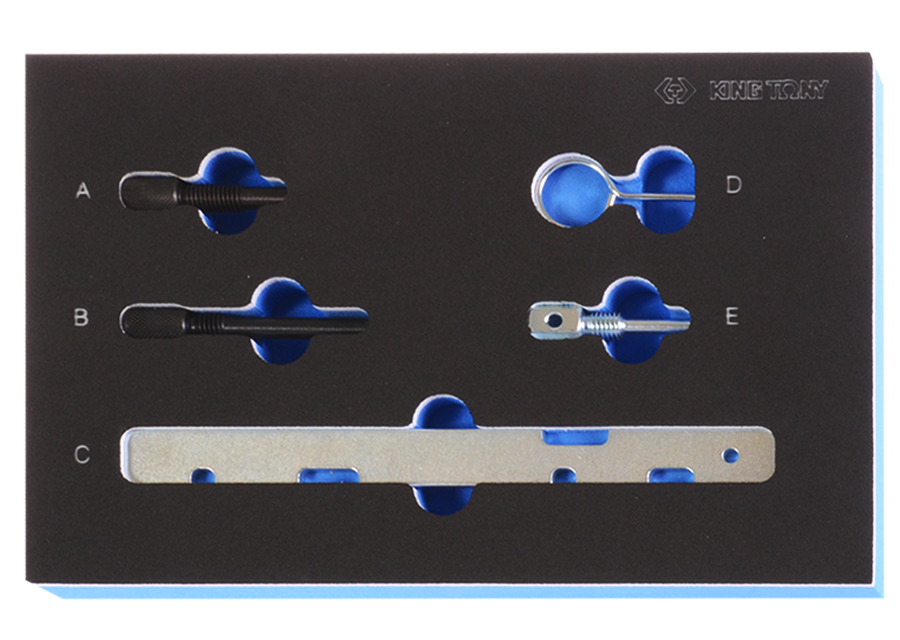

Petrol Engine Timing Locking Tool Set
FORD – MAZDA – VOLVO
The set includes revised design camshaft setting plate and tensioner locking pin
Suitable for all later DURATEC petrol engine
Use to ensure timing position is fixed and maintained correctly during engine timing application

Model:

Ford
1.25 to 2.3 16V
DURATEC(Belt/Chain)
Fiesta (95-09)
Fusion (02-09)
Puma (97-02)
Focus (98-09)
Focus C-Max (03-07)
C-Max (07-09)
Mondeo (93-09)
Cougar (98-01)
S-Max (06-09)
Galaxy (06-09)
Tourneo Connect (02-06)
Transit Connect (02-06)
Transit (06-09)

Engine Code:

1.25 16v (Belt)
DHA~G / F8JA~B / FUJA~B
M7JA~B / SNJA / STJA
1.4 16v (Belt)
ASDA~B / FHA / FHD~F /
FXDA/C / FXDB/D / FXJA~B /
SPJA
1.6 16v (Belt)
FYDA/C / FYDB/D / FYJA~B /
L1F / L1J / L1L /
L1N / L1Q / L1T /
L1V / L1W / HWDA~B
1.7 16v (Belt)
MHA~B
1.8 16v (Belt)
EYDB~G / EYDI~J / EYPA /
EYPC / RKA~B / RKF /
RKH / RKJ / RKK
1.8 16v (Chain)
CDBB / CGBA/B / CHBA/B /
CSDA~B / QQDA~C
2.0 16v (Belt)
EDBA/C / EDBB / EDBD /
EDDB~D / EDDF / NGA~D
2.0 RS/ST170 (Belt)
ALDA / HMDA
2.0 16v (Chain)
AOBA / AODA~B / AOWA /
CJBA/B / N4JB
2.3 16v (Chain)
SEBA / SEWA / GZFA /
GZFB

Model:

Mazda
1.25 to 2.3 16v (Belt/Chain)
121 (95-00)
2 (02-07)
3 (03-09)
5 (05-09)
6 (02-09)
MX-5 (05-09)
MPV (02-05)
Tribute (01-01)

Engine Code:

1.25 to 2.3 16v (Belt/Chain)
1.25 16v
DHA / FUJA / FUJB
1.4 16v
FXJA / FXJB
1.6 16v
FYJA
1.8 16v
L8
2.0 16v
LF / YF
2.3 16v
L3

Model:

Volvo
S40 / V50 (04-09)
C30 (06-09)

Engine Code:

1.8 / 1.8 / 2.0 16v
Twin Cam (Belt / Chain)
1.3 16v
B4164S3(Belt)
1.8 16v
B4184S11(Chain)
2.0 16v
B4204S3(Chain)
