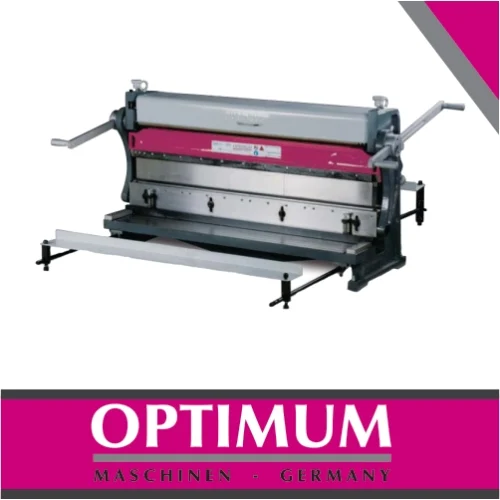

SHEET METAL WORKING MACHINE
Delivery Available | Harare | Mutare | BulawayoSteel Sheet Processing Machine 3 in 1. Round Bending, Folding and
Cutting. Perfect for the Demanding User.
Description
- Steel sheet processing machine 3 in 1. Round bending, folding and cutting.
- Perfect for the demanding user
- Modern structural shape of stable steel structure
- High design flexibility due to segmented bending rail
- Segments removable from the folding jaw
- Operation via two laterally placed levers
- Long support surface
- Extractable support arm for safe positioning of large format steel sheets
- Scissor table with embedded measuring tapes and right-angled stop on both sides
- Easy to adjust top -, rear and bottom cylinder
- Large, adjustable and easy to operate lever arms
- Extractable rear stop and front material support for safe positioning
Round bending
- Adjusting screws for the material thickness with scaling
- Ground bending rollers with wire insertion grooves on the bottom and front cylinder
Folding
- High quality folding jaws
- Holding-down device with spring
- Folding machine subdivided in segments
- Segments removable from the folding jaw 40 mm/ 50 mm/65 mm/100 mm/180 mm/255 mm/ 380 mm for folding of cartridges
Cutting
- Neat and burr-free cutting by means of top and bottom knife made of quality steel
Technical Specifications
| Material width (max.) | 700 mm |
| Round bending (min.) | 48 mm |
| Round bending (max.) | unbegrenzt |
| Steel sheet metal (S235JR) | bis 1 mm |
| Stainless steel | bis 0,5 mm |
| Aluminium/Copper | bis 1,5 mm |
| Brass | bis 1 mm |
| Gold/silver/tin plate | bis 1,5 mm |
| Unwinding cylinders-ø | 48 mm |
| Sheet thickness (max.) | |
| Aluminium/Copper | bis 1,5 mm |
| Steel sheet metal (S235JR) | bis 1 mm |
| Numbers of segments | 7 |
| Cutting capacity (max.) | bis 1 mm |
| Net weight | 290 kg |
Delivery Information
- Adjustment rear stop
- Front material support
- Tool
