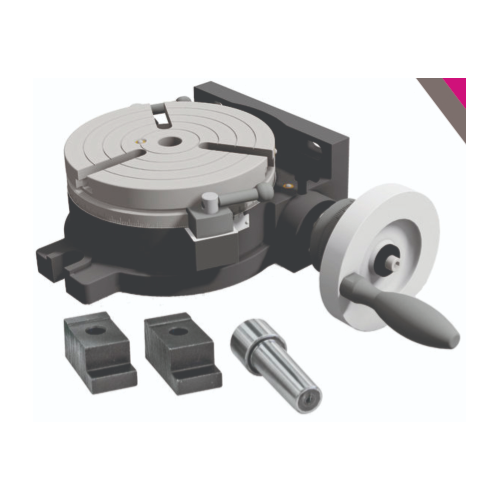

RT150 ROTARY TABLE
Delivery Available | Harare | Mutare | BulawayoRT 150
Circular dividing table
Technical Specifications
| Chucks | 150 mm |
| Construction height | 79 mm |
| Width | 156 mm |
| Length | 204 mm |
| Centre height | 102 mm |
| Slot width | 11 mm |
| Indirect indexing plate | yes |
| Weight | 12 kg |
Description
Horizontal-vertical circular dividing tables
- Quality circular dividing tables made of high-quality Meehanite cast
- Precision bearing
- Stability even under heavy load
- Large spindle hole lo clamp longer workpieces
- Quick-action dividing via locking discs for higher manufacturing speed for mass parts
- Hardened and ground screw
- Working table with 360° scaling
- 1 turn of the handwheel 4° rotation
- Scaling on the handwheel 2I
- Possible division via scaled handwheel with vernier
- Up to 150 pcs. different divisions with indirect dividing plates are available
- Optional: CNC add-on kit’s MK RT1 and MK RT2 to control the horizontal vertical circular dividing tables
