PRECISION SURFACE GRINDING MACHINE
PRECISION SURFACE GRINDING MACHINE
Machinery, Micro-tec, Surface Grinding Machines Delivery Available | Harare | Mutare | BulawayoFSM 1545

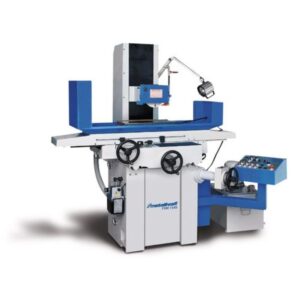

Precision surface grinding machine
Surface
Grinders Metal Kraft
Technical specifications
| Size of the clamping plate | 150 x 450 mm |
| Max. Distance between spindle and table | 450 mm |
| Traversing speed of the table | 5 – 25 m / min |
| Max. Workpiece weight | 110 kg |
| Spindle speed | 2900 min-1 |
| Size of the grinding wheel | 180 x 13 x 31.7 mm |
| Motor power spindle | 1.5 kW |
| Engine power hydraulic pump | 0.75 kW |
| Electrical connection | 400 V / 50 Hz |
| Dimensions (L x W x H) | 1900 x 1300 x 1700 mm |
| mass | 900 kg |
description
FSM – precision surface grinding machines with NC-controlled vertical feed
- For precision surface grinding in the industrial sector
- Maximum rigidity and stability thanks to stress-free re-hardened and hardened cast iron construction
- IP65-protected halogen lighting
- With automatic central lubrication for all slides and spindles
- Electromagnetic clamping plate for fixing the workpiece incl. Automatic demagnetization function
- High quality spindle with precision tapered roller bearings (concentricity 2 μm)
- Hand-scraped and “Turcite-B” coated V-flat guides guarantee extremely smooth, low-friction movement and maximum precision

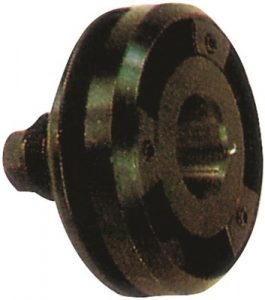

- Second grinding wheel flange
Scope of delivery & equipment
- Electro-magnetic chuck
- automatic demagnetizer
- Grinding wheel
- grinding wheel
- Balancing arbor
- parallel wheel
- Ausrichtfüße
- operating tool

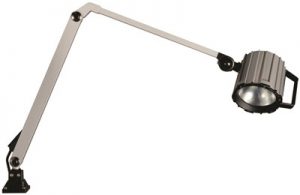

- Halogen work light (IP65)
- Coolant system
ON ORDER ONLY
