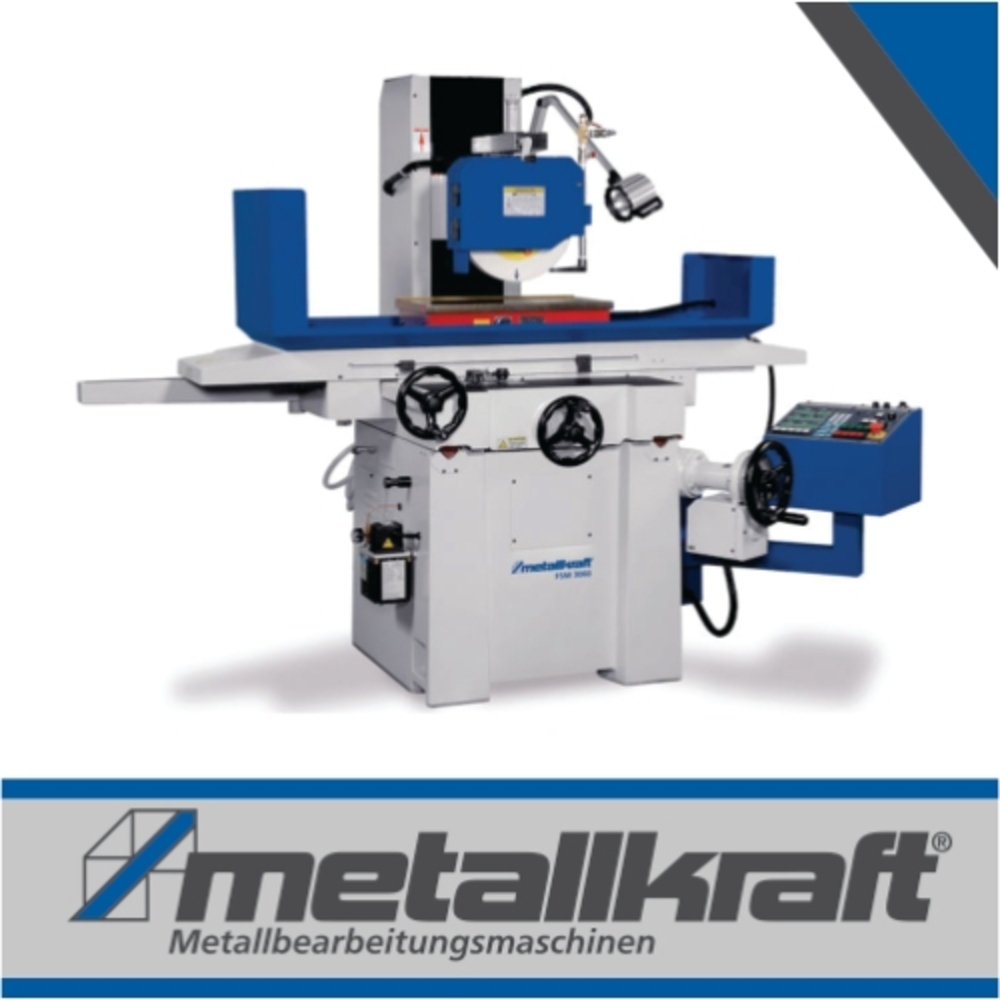

Machinery, Micro-tec, Surface Grinding Machines Delivery Available | Harare | Mutare | BulawayoFSM 3060
Precision surface grinding machine
Technical Specifications
| Size of the clamping plate | 300 x 600 mm |
| Max. Distance between spindle and table | 500 mm |
| Traversing speed of the table | 5 – 25 m / min |
| Max. Workpiece weight | 215 kg |
| Spindle speed | 1450 min-1 |
| Size of the grinding wheel | 355 x 38 x 127 mm |
| Motor power spindle | 3.75 kW |
| Engine power hydraulic pump | 0.75 kW |
| Electrical connection | 400 V / 50 Hz |
| Dimensions (L x W x H) | 2650 x 1550 x 1800 mm |
| mass | 1700 kg |
description
FSM – precision surface grinding machines with NC-controlled vertical feed
- For precision surface grinding in the industrial sector
- Maximum rigidity and stability thanks to stress-free re-hardened and hardened cast iron construction
- IP65-protected halogen lighting
- With automatic central lubrication for all slides and spindles
- Electromagnetic clamping plate for fixing the workpiece incl. Automatic demagnetization function
- High quality spindle with precision tapered roller bearings (concentricity 2 μm)
- Hand-scraped and “Turcite-B” coated V-flat guides guarantee extremely smooth, low-friction movement and maximum precision
- Second grinding wheel flange
Delivery Information
- Electro-magnetic chuck
- automatic demagnetizer
- Grinding wheel
- grinding wheel
- Balancing arbor
- parallel wheel
- Ausrichtfüße
- operating tool
- Halogen work light (IP65)
- Coolant system
