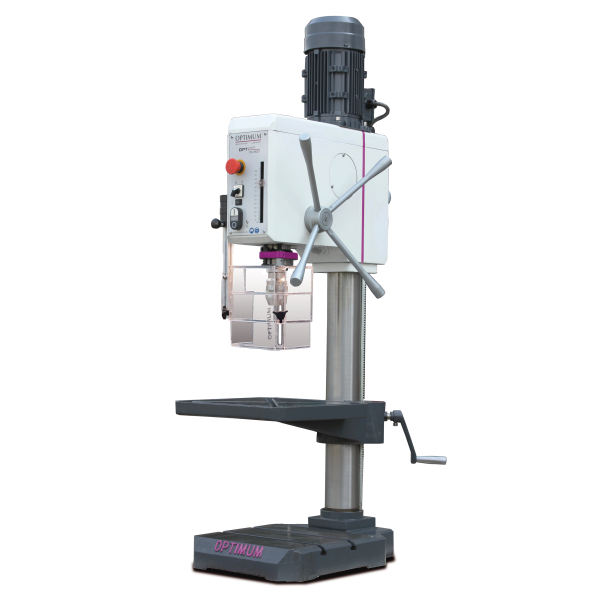

OPTI GEARED HEAD DRILL 26MM
Geared Head Drilling Machine, Machinery Delivery Available | Harare | Mutare | BulawayoBench drilling machine with gear
Technical Specifications
| Electrical connection | 400 V / 3 Ph ~50 Hz |
| Total connected load | 1,1 / 1,5 kW |
| Drilling capacity in steel (S235JR) | 24 mm |
| Continuous drilling capacity steel (S235JR) | 21 mm |
| Throat depth | 235 mm |
| Spindle stroke | 127 mm |
| Spindle seat | MT 3 |
| Automatic spindle sleeve feed | – |
| Spindle speeds 8 Steps | 75 – 2.900 min-1 |
| Table work surface length x width | 380 x 380 mm |
| T-slot size | 14 mm, diagonal |
| Inclinable drilling table | – |
| Rotatable drilling table | 360 degree |
| Distance spindle – table | max. 450 mm |
| Distance spindle – stand | max. 610 mm |
| Stand work surface length x width | 350 x 322 mm |
| Stand T-slot size | 14 mm |
| Stand number of T-slots | 2 |
| Stand T-slot distance | 120 mm |
| Column diameter | 92 mm |
| Dimensions | 600 x 380 x 1.300 mm |
| Total weight | 158 kg |
Description
- Bench drills and upright drilling machines with gear
- High true running accuracy due to hardened and ground main spindle
- Wide speed range
- Heavy, solid cast iron construction
- Adjustable drilling depth stop with millimetre scale
- Low maintenance gear with grease lubrication
Features
Gear
- 8 gear stage
DH26GT/28GS: 75 – 2’900 min-1
Integrated drill drift
- Easy tool change due to ejection mechanism
Right-hand/left-hand rotation
Machine luminaire
- Integrated in the drill head
- Halogen lamp
Chuck guard
- Best possible protection of the user
- Height-adjustable
- Micro switch
Casting column
- Thick-walled
- For high power absorption and stability
Drilling table
- Largely dimensioned
- Solid
- Precisely worked
- Transversally running T-slots
- Heavily ribbed at the rear side
Extent of Supply
- Adapter MT 3-B16
