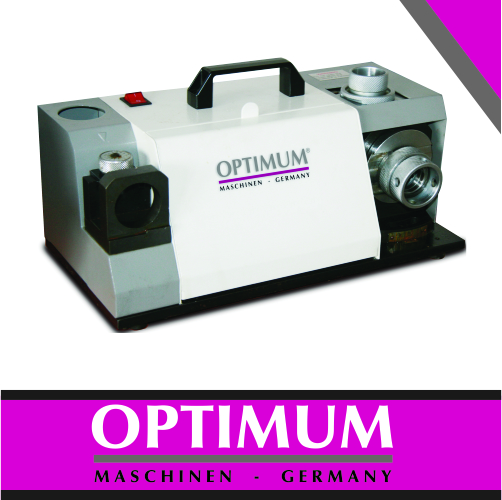

OPTI DRILL GRINDER 3MM – 30MM
Delivery Available | Harare | Mutare | BulawayoDrill grinder
- The handy drill grinder – perfect to grind spiral drills made of HSS or hard metal
- Easy operation for precise and cost-efficient grinding of two-edged spiral drills
- Drill bit grinding without previous knowledge – neatly, rapidly and well
- Easy to transport
- Diamond grinding stone with long durability for perfect grinding
- Complete equipment with ER collet chucks in the interior of the machine
- The edges of the drill bit are fixed in the collet holder by means of the adjustment aid in a defined position and inserted in the grinding openings in a predetermined sequence in order to grind the edges
with short rotating movements of the collet holder
Technical Specifications
| Electric tension | 230 V |
| Phase | 1 Ph |
| Type of current | ~ |
| mains frequency | 50 Hz |
| Motor power | 450 W |
| Speed infinitely variable | 5000 min-1 |
| Angle of the tip sharpening | 90 to 145 degree |
| Grinding capacity drill | |
| Dimensions L x W x H | 450 x 240 x 270 mm |
| Net weight | 33 kg |
Delivery Information
- 6 pcs. Collets ER 20 Sizes Ø 3 – 8 mm
- 22 pcs. Collets ER 40 Sizes Ø 8 – 30 mm
| GH15T-W | SPARE WHEEL GH15T |
