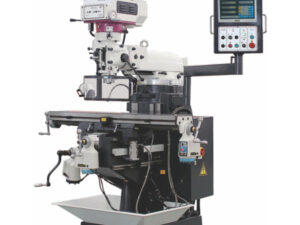

MILLING MACHINE MF 2-B
MILLING MACHINE MF 2-B - Image 2

MILLING MACHINE MF 2-B

,

Delivery Available | Harare | Mutare | Bulawayo

Drilling-milling machine

Technical Specifications

length 2,000 mm
Width depth 1,600 mm
height 2,010 mm
Weight (net) 1,000 kg
Total connected value 3 kW
Supply voltage 400V
Phase (s) 3 Ph
Current Type ~
power frequency 50 Hz
Knife head size max. 76 mm
End mill size max. 25 mm
Vertical spindle projection 15-415 mm
Vertical spindle Spindle mount ISO 40 DIN 2080
Vertical spindle speed range 60 – 4,200 min-1
Vertical spindle Number of speed ranges 2
Vertical spindle Control of the speed control mechanically stepless
Horizontal milling length 230 mm
Horizontal milling width 1,246 mm
Distance vertical spindle – horizontal milling table max. 405 mm
Horizontal milling T-slots size 16 mm
Horizontal milling T-slots number 3
Horizontal milling T-slots clearance 63 mm
Horizontal milling load max. 200 kg
Vertical spindle Power Drive motor Normal operation 2.2 kW
Traverse X-axis manually 690 mm
Travel Y-axis manually 310 mm
Travel Z-axis manually 390 mm
Traverse X-axis automatically 610 mm
Traverse Y-axis automatically 230 mm
Traverse Z-axis automatically 310 mm
Drilling capacity steel (S235JR) 24 mm
Continuous drilling capacity steel (S235JR) 20 mm
Vertical spindle Turning area milling head X – Y plane 90 degrees
Vertical spindle Turning area milling head Z – X plane 45 degrees
Vertical spindle Pinole diameter 86 mm
Vertical spindle Quill stroke 127 mm
Vertical spindle quill feed 0.04 / 0.08 / 0.15 mm / rev
Vertical spindle Milling head Travel Z-axis 312 mm

description

  • Multifunctional drilling and milling machines for professional use. Mechanically steplessly adjustable drive
  • Heavy, solid design made of high-quality Meehanite cast iron
  • High concentricity due to tapered roller bearing, measured smaller than 0.01 mm in the quill
  • Automatic quill feed
  • Right / left rotation for thread cutting
  • X- and Z-axis with adjustable 55 ° dovetail guide
  • Y-axis with flat guide
  • Coolant system
  • Right and left rotation
  • Automatic quill feed, 3-stage 0.04 – 0.15 mm / rev
  • Precision micro feed
  • Milling spindle with precision bearing
  • Mechanical spindle brake
  • Drilling depth scale and stroke
  • Smooth-running, precise cross table with T-slots and coolant channel
  • Motor feed in the X, Y and Z axes
  • Integrated digital position indicator DPA 2000
  • Swiveling arm with integrated control panel
  • Central lubrication

MF 4V-B:

  • Load capacity cross table 300 kg
  • Large travel: X / Y / Z axis automatically 820 mm / 320 mm / 340 mm

Room amenities

  • control panel
    • Integrated control panel
    • Integrated digital position indicator DPA 2000 with speed display
  • Drill-mill head
    • Tiltable ± 45 °
  • Spindle speeds
    • Stepless speed control
    • Especially large speed range
  • depth stop
    • Adjustable with millimeter scale
    • Front readable
  • windscreen
    • adjustable height
    • Large dimensions
  • cross table
    • Solid
    • Large dimensions
    • Precise surface finish
    • Motorized table height adjustment Z-axis
    • Adjustable end stops
  • Y and Z axis
    • Motorized table feed
  • X axis
    • Motorized table feed
    • Stepless speed control
    • Rapid
    • Forward / reverse operation

Delivery Information

  • operating tool

ON ORDER ONLY
