METAL HAND CIRCULAR SAW / DRAY CUTTER METAL FORCE
Delivery Available | Harare | Mutare | BulawayoMTS 356
Metal drier Schneider

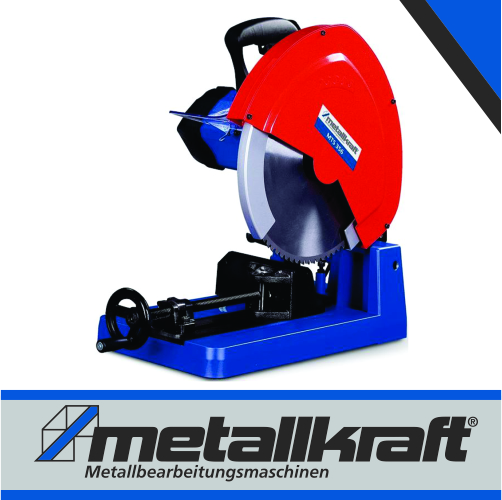

Metal hand circular saw / dry cutter
Metal Kraft
Technical specifications
| Motor power 230 V / 50 Hz | 2.2 kW |
| speeds | 1300 rpm |
| Cutting area 90 ° rectangle * | 100 x 180 mm |
| Cutting area 90 ° square * | 120 x 120 mm |
| Cutting area 90 ° round material * | 132 mm |
| Cutting area 45 ° rectangle * | 120 x 90 mm |
| Cutting area 45 ° square * | 90 x 90 mm |
| Cutting area 45 ° round material * | 105 mm |
| Saw blade diameter | 355 mm |
| mass | 23.5 kg |
description
- Metal dryers, metal sawing without coolant
- Extremely stable and robust construction
- Easy to transport
- For burr-free sawing of profiles and tubes made of steel, iron, copper, brass, aluminum, plastics, composites and stainless steel without coolant
- Application eg in metal construction, in carpentry, interior fitters etc.
- Motor with soft start, therefore easier handling when switching on the saw
- Standard with a prism clamping jaw for clamping pipes
- Vise with quick adjustment
- Safe stand thanks to die-cast aluminum base
- Angle for miter cuts
- Right 45 °, left 39 °
- With length stop for precise cuts
- With spindle lock for faster saw blade change
Room amenities
- Miter angle easy to read on scale
- Vise steplessly adjustable from right 45 °, left 39 ° swiveling
- Vise with quick adjustment
- Saw equipped with quick-action vise, by switching the lever switching between quick-release
- Prismatic vice for pipes
- (second prism jaws optional, item no. 3850355)
Scope of delivery & equipment
- Prism jaw
- operating tool
ON ORDER ONLY
