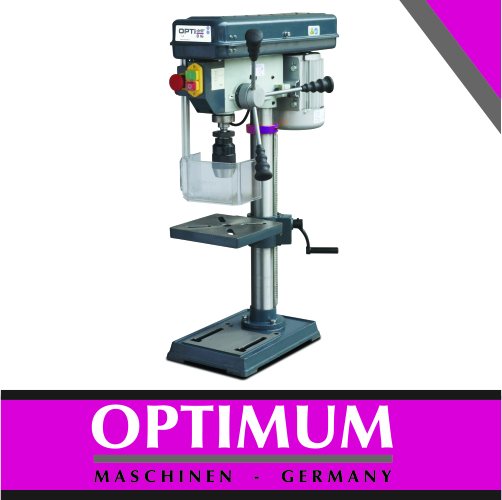

DRILL MACHINE BENCH 16MM 450W (B16)
Drill Presses, Machinery Delivery Available | Harare | Mutare | BulawayoBench Drill 16mm Chuck (B16)
Bench drilling machine
Drilling machines with V-belt
Technical Specifications
| Electrical connection | 230 V / 1 Ph ~50 Hz |
| Motor power | 450 W |
| Drilling capacity in steel (S235JR) | 16 mm |
| Continuous drilling cap. steel | 15 mm |
| Throat depth | 125 mm |
| Spindle stroke | 65 mm |
| Spindle seat | MT 2 |
| Spindle speeds | 660 – 2.500 min-1 |
| Number of steps | 5 Steps |
| Drilling table size length x width | 200 x 200 mm |
| T-slot size (slot width) | 14 mm, diagonal |
| Drilling table slewable | +/- 45 degree |
| Drilling table rotatable | 360 degree |
| Distance spindle – table | max. 390 mm |
| Distance spindle – stand | max. 525 mm |
| Stand work surface L x W | 160 x 170 mm |
| Column diameter | 60 mm |
| Length x width x height | 510 x 270 x 820 mm |
| Net weight | 34 kg |
Description
- Cost-efficient bench drills and upright drilling machines with V-belt
- Precisely machined drilling table, can be inclined by ± 45° and turnable by 360°
- Solid, largely dimensioned base plate with slots, heavily ribbed at the rear side
- 400 volt types with right-/left-handed rotation cam switch
- Millionfold proven quality
- from OPTIdrill B 14: Serial T-slots for vice fixture
- Ground multi-toothed follower
- Best power transmission due to aluminium belt pulleys in connection with toothed GATES quality V-belt
- V-belt cover with safety switch
- Guaranteed true running accuracy of better than 0.03 mm measured in the drilling spindle
- Drilling spindle with precision ball bearing
- OPTIMUM quick-action drill chuck included in the standard scope of delivery
- Spindle sleeve lever with softgrip handles for safe working
- Drill depth stop
- User-friendly switch according to IP 54 with undervoltage release
- S eparate EMERGENCY-STOP push button
Delivery Information
- Quick-action drill chuck 1 – 16 mm
- Morse taper MT 2/B16
- T-slots
